Berghof - Modular Controllers
Excluding GST. Volume discounts available.
The B-Nimis MC-Pi range is a family of modular, Raspberry Pi-based CODESYS PLCs engineered for industrial automation. Built on Berghof's coordinated hardware and software platform, each controller delivers real-time performance across a scalable set of interfaces and connectivity options — from compact entry-level deployments through to full multi-protocol, motion control applications. The range is completed by a suite of EtherCAT I/O expansion modules for tailored, application-specific configuration.
Technical Description

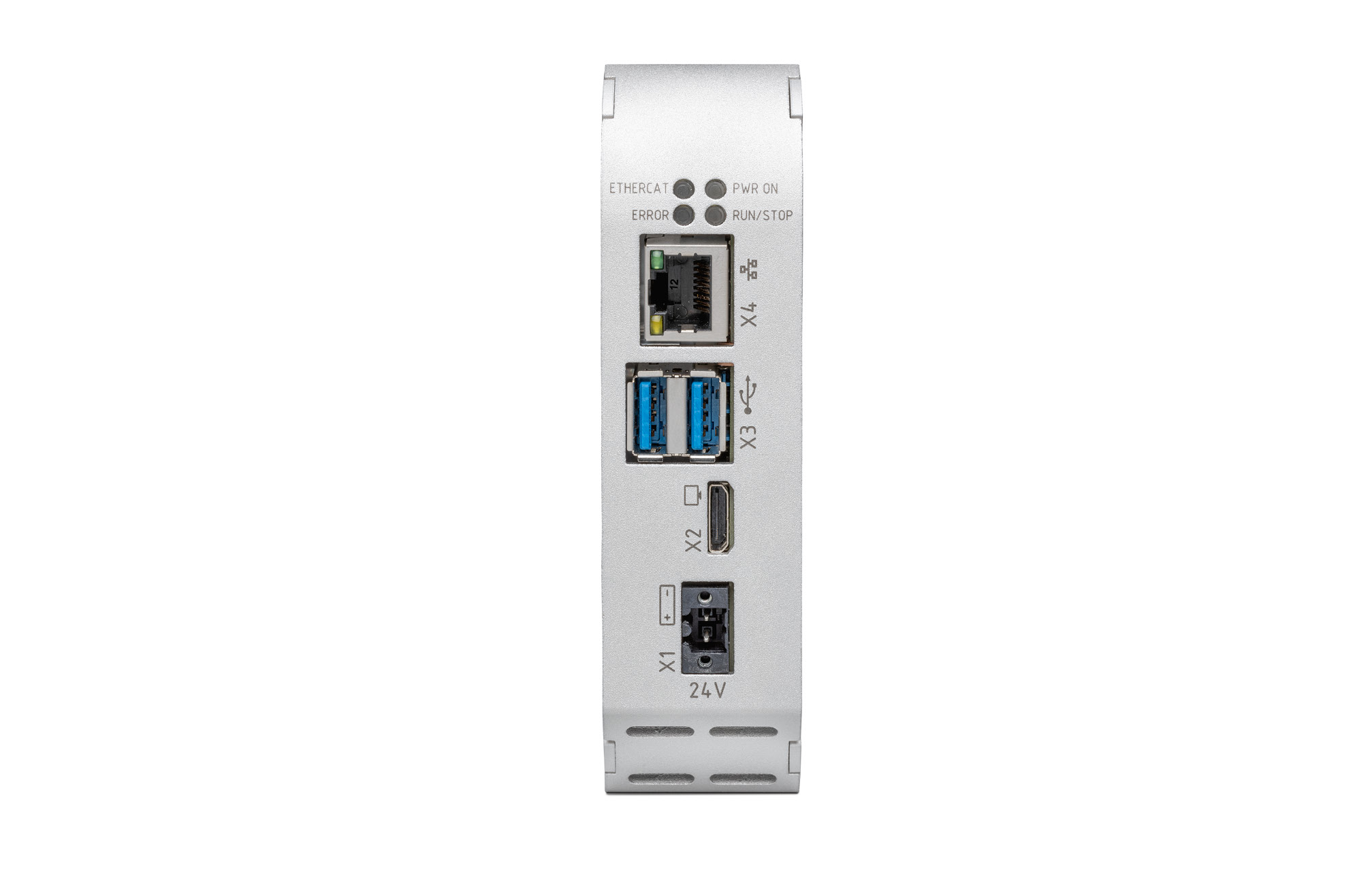

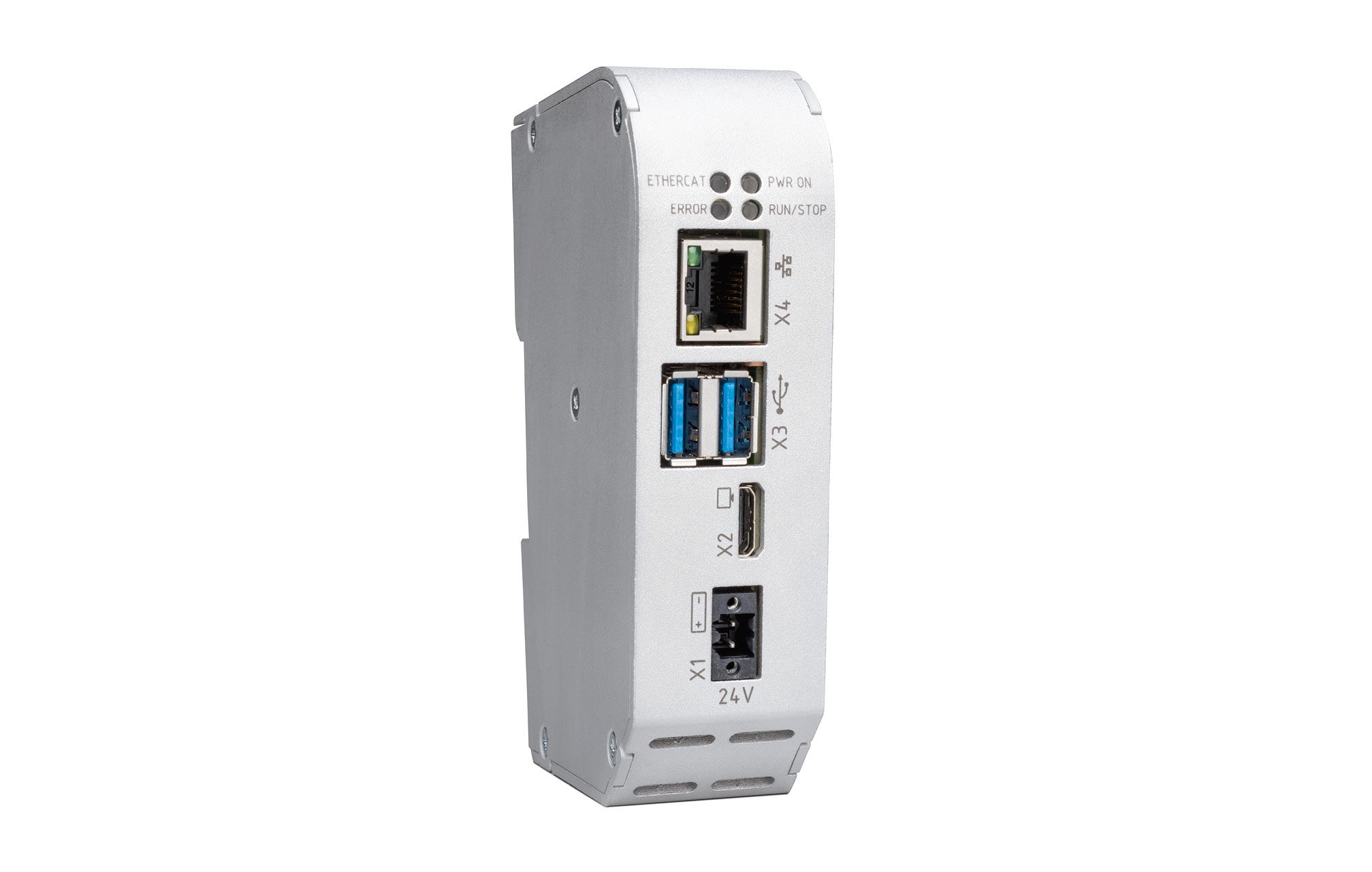

MC-Pi Pro
Quad-core CPU (Raspberry Pi CM4) with optimised hardware/software coordination for excellent real-time performance
Entry-level configuration includes 2 GB RAM, 8 GB Flash, and 200 kB Retain memory
Suitable for a wide range of industrial applications
Integrated EtherCAT communication system
Rated for industrial temperature ranges
Optional WLAN and Bluetooth connectivity

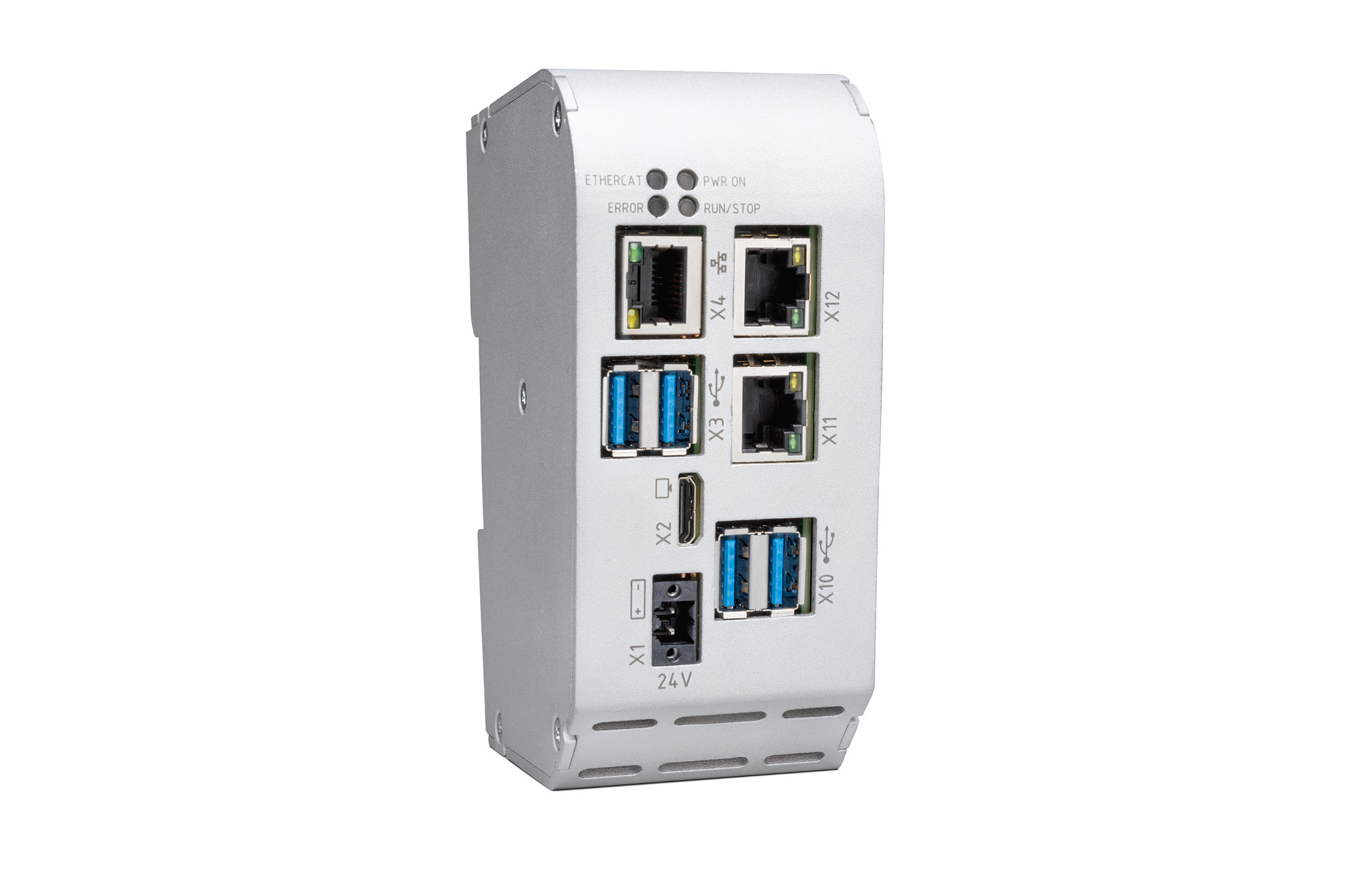

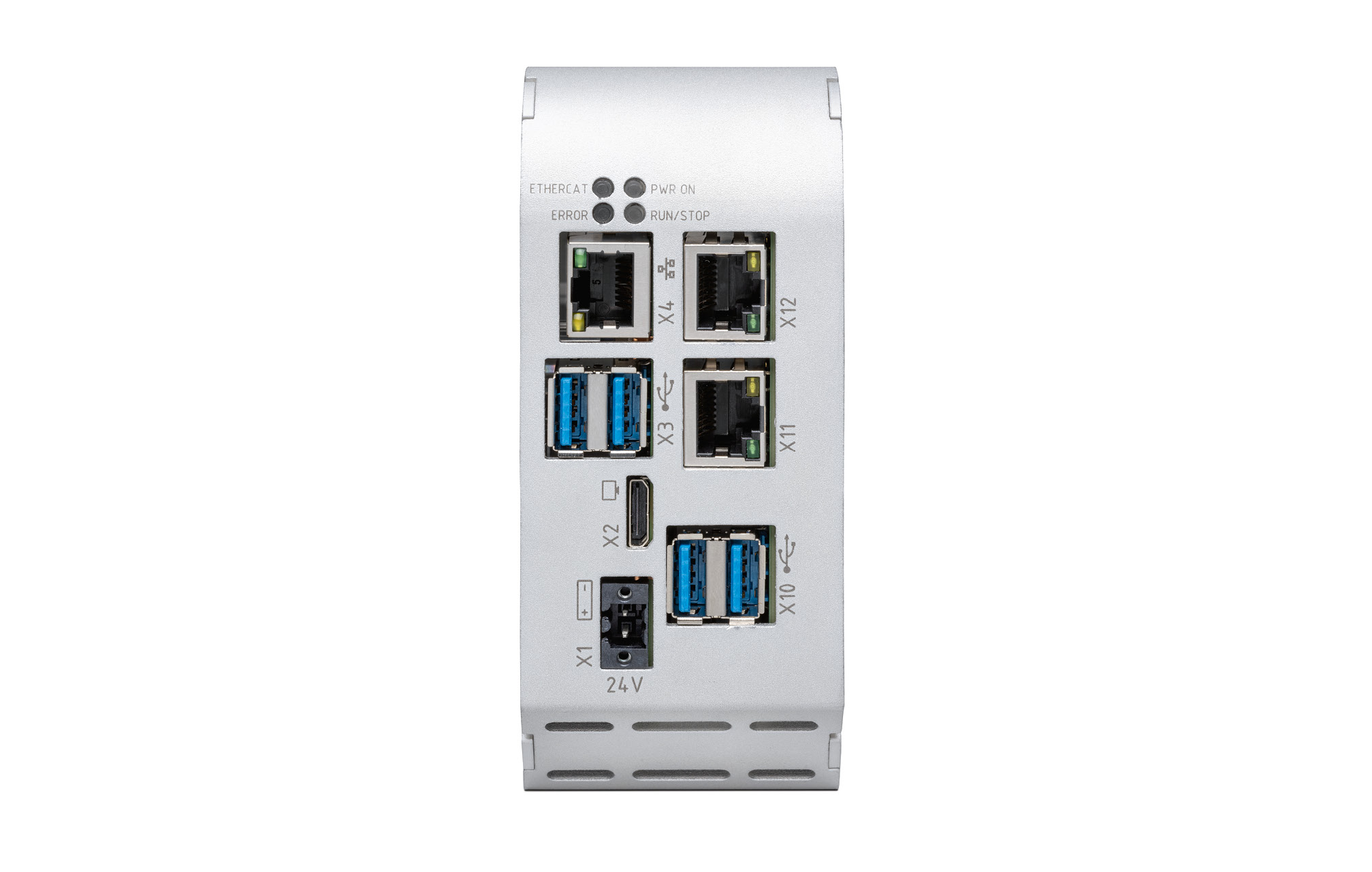

MC-Pi Prime
Adds USB and uSD card slot for time-saving firmware and application updates
Project data and configurations can be saved, backed up, and exchanged via SD card
Supports preconfigured devices and automatic configuration via USB stick
Connectivity: USB 3.0, Gigabit Ethernet, WLAN, and Bluetooth
Integrated EtherCAT communication system
Rated for industrial temperature ranges

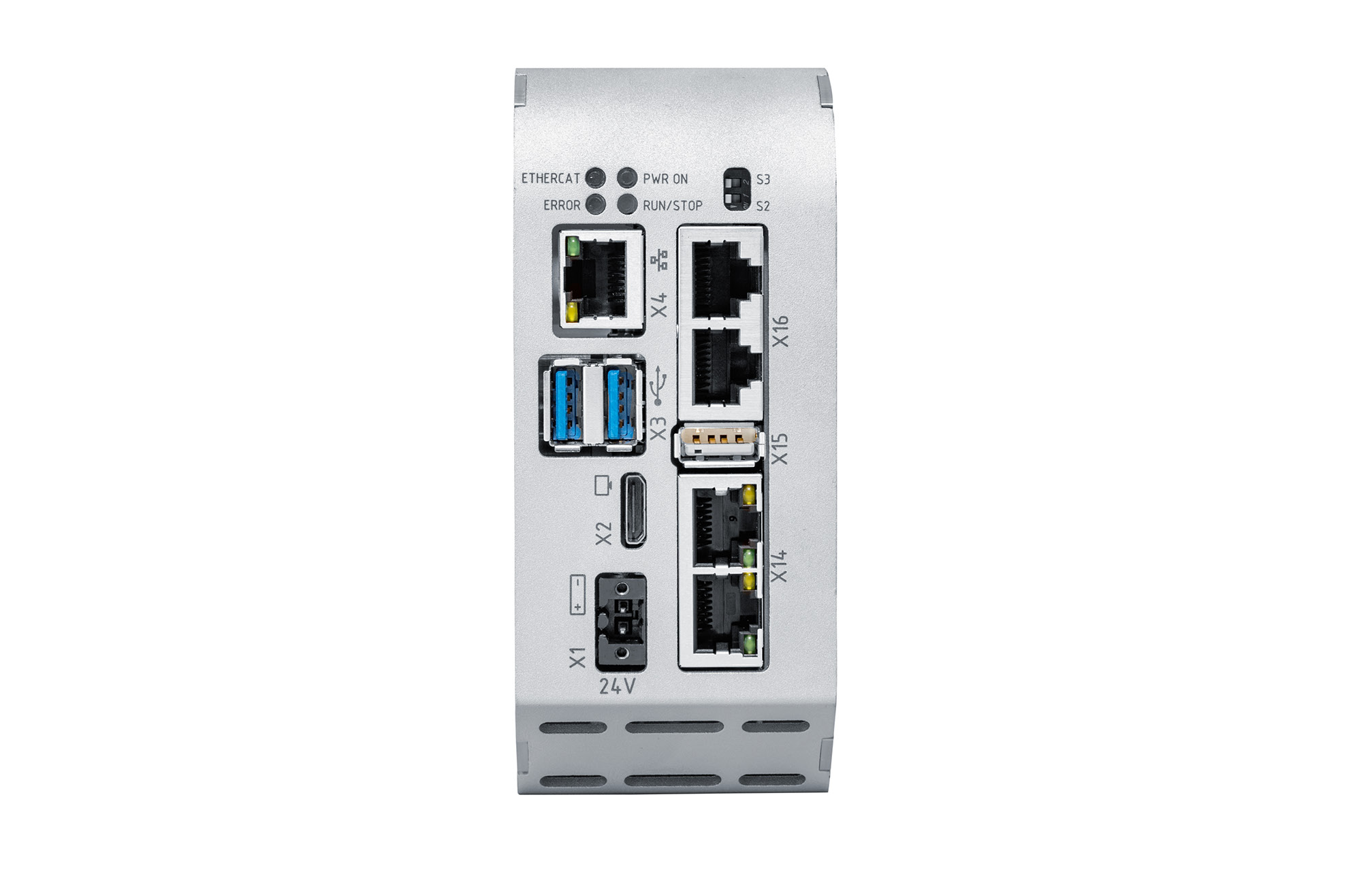

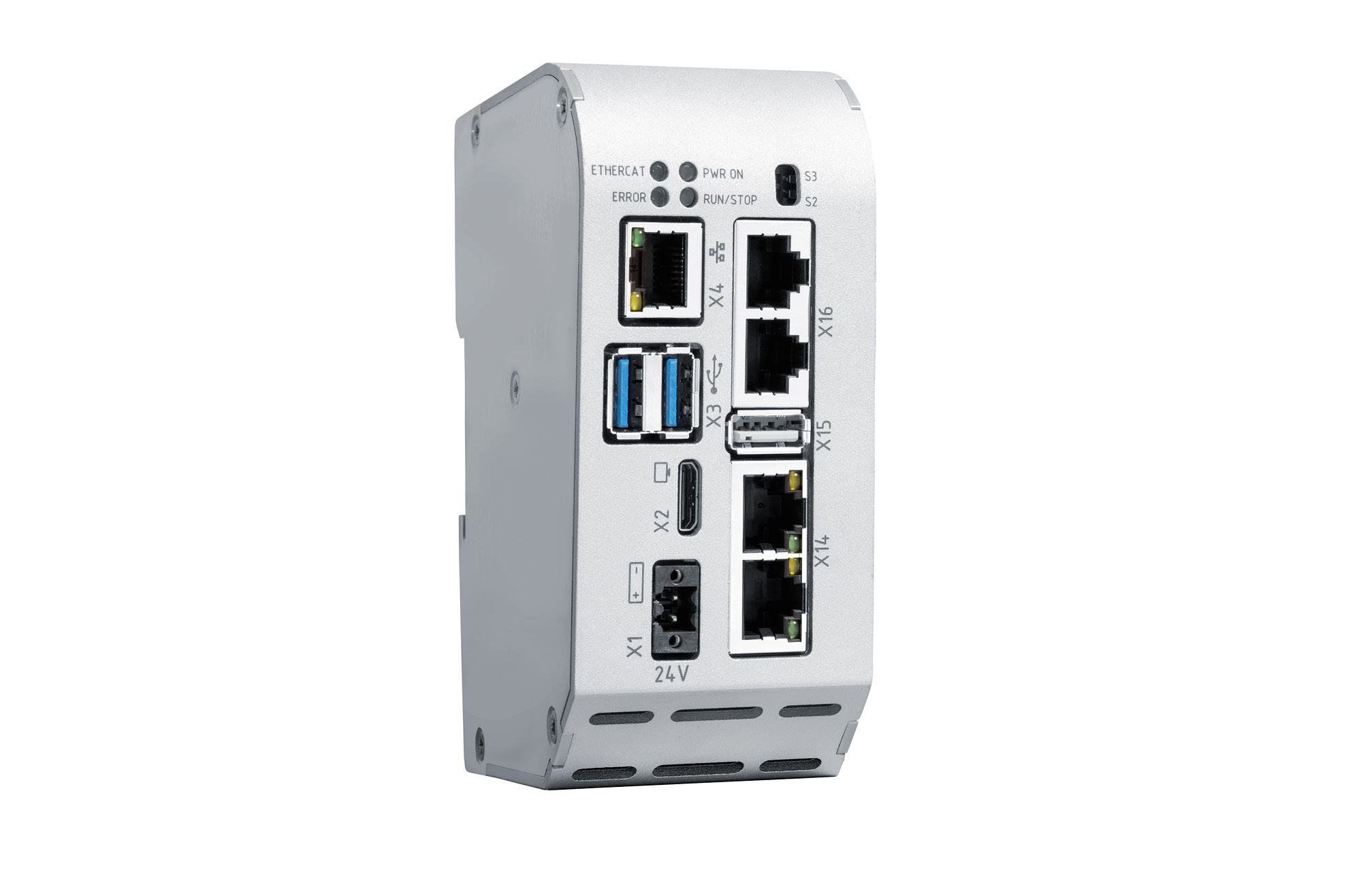

MC-Pi Plus
Extends the Prime with RS232/RS485 and CAN interfaces
Well-suited for advanced tasks including Softmotion CNC
Connectivity: USB 3.0, Gigabit Ethernet, WLAN, and optional Bluetooth
Integrated EtherCAT communication system
Rated for industrial temperature ranges

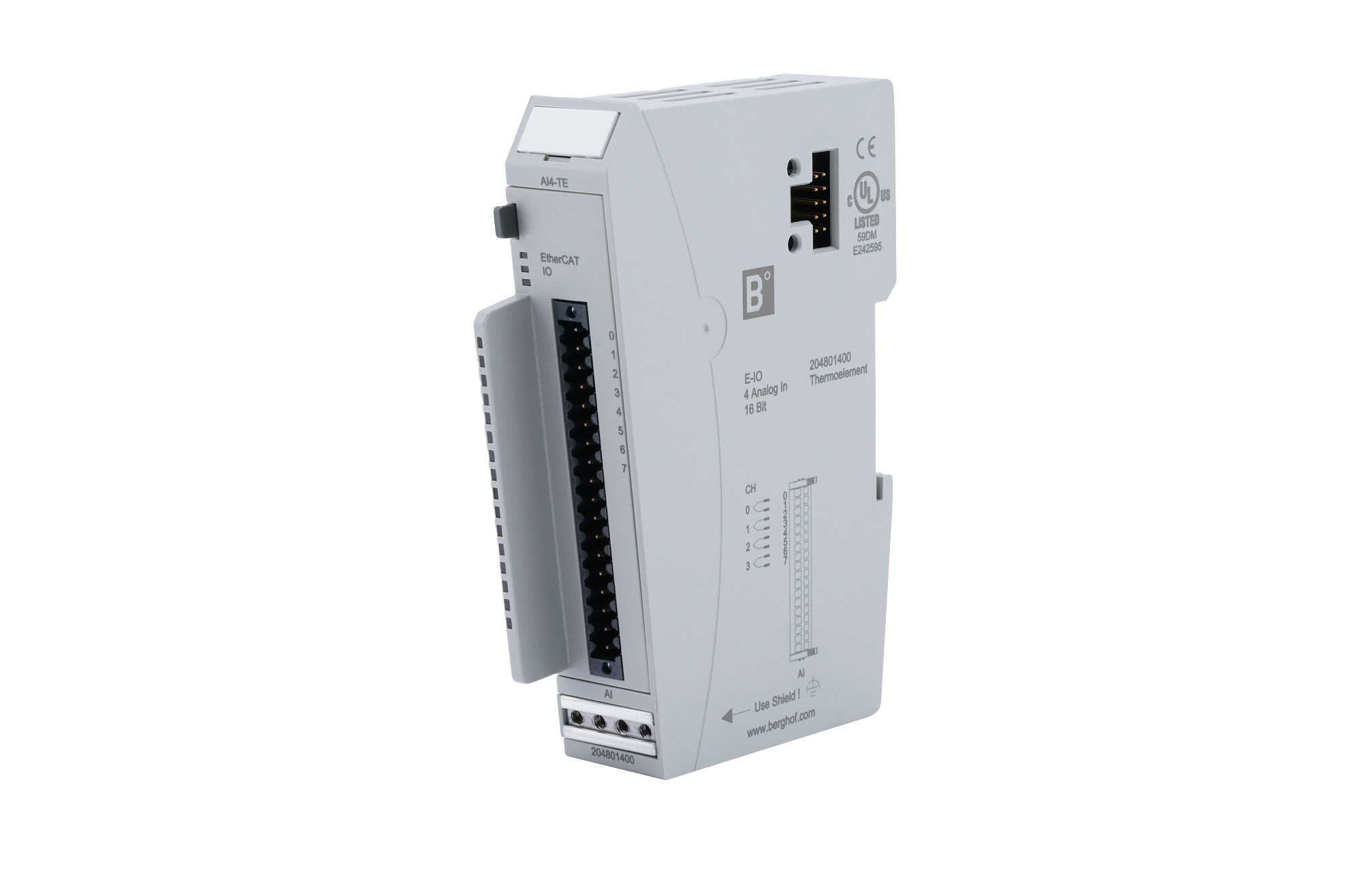

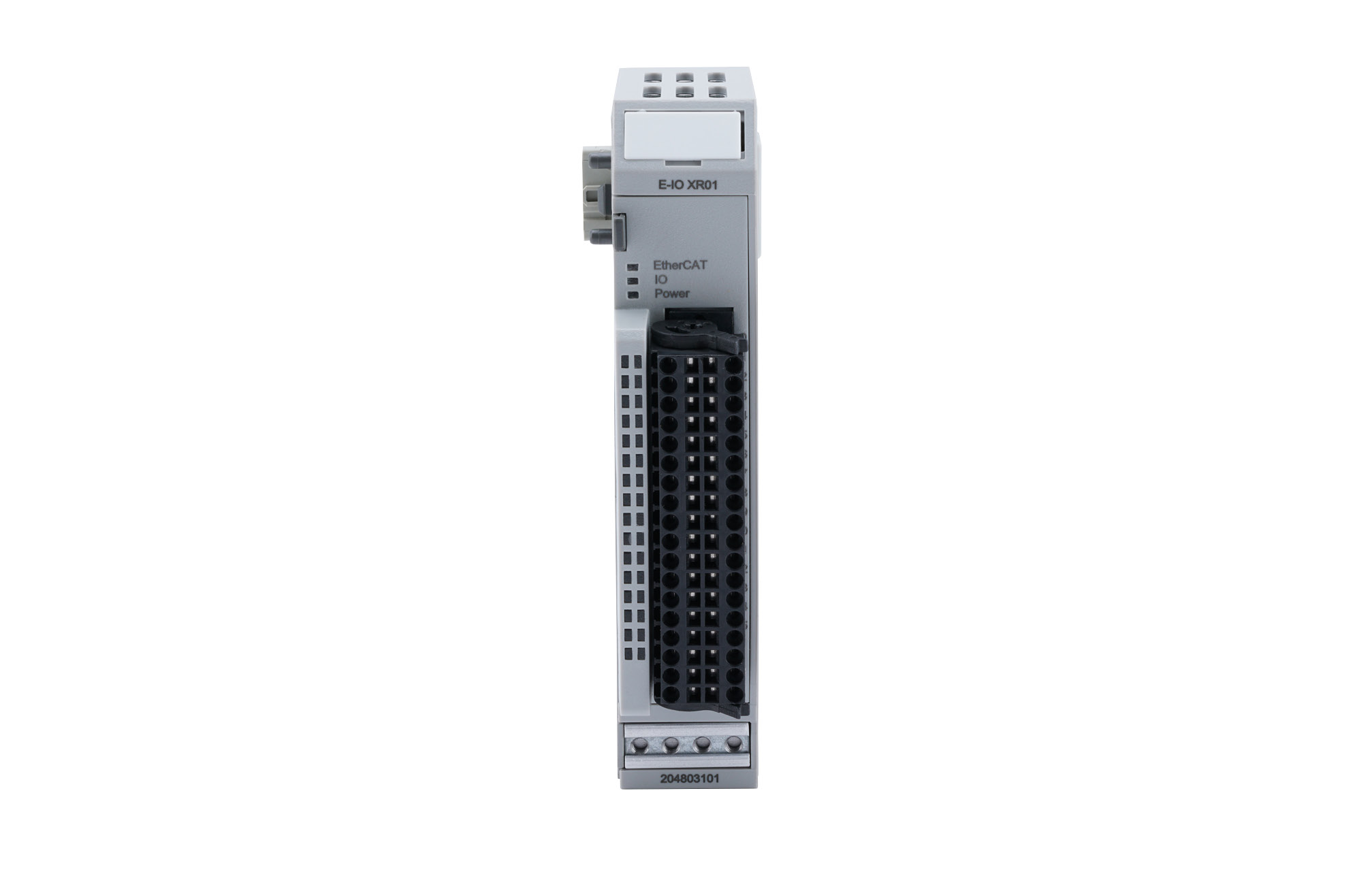

EtherCAT I/O Extensions
20 available EtherCAT® expansion modules, all UL-certified
Connect directly to B-Nimis MC-Pi controllers or use remotely via a bus coupler module on any EtherCAT® controller
Enables tailored I/O configuration to match specific application requirements
