Odot Automation
Premium stock available for immediate purchase and professional integration.
Odot Automation Selection
12 of 12 Results

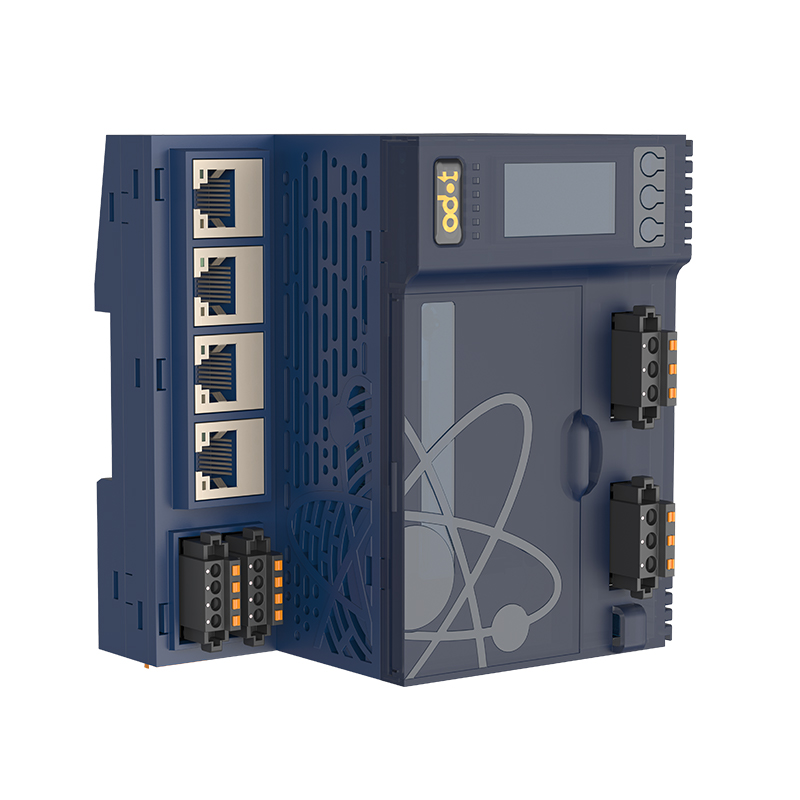

Odot - C4374 CODESYS PLC with Support for Modbus RTU/TCP, EtherCAT, and CANOpen
The C4374 is an IEC61131-3 compliant PLC supporting all five standard programming languages, 4 MB program/data memory, and up to 32 freely combinable IO modules across 6 categories. It features 3×RJ45, RS485, and CAN connectivity with Modbus RTU/TCP, EtherCAT, and CANOpen protocol support. Rated for -30°C to 70°C and compliant with IEC61131-2/IEC61000-4 EMC standards, it is recommended for use with CODESYS V3.5.19.70. 1x CT-5801 is required.

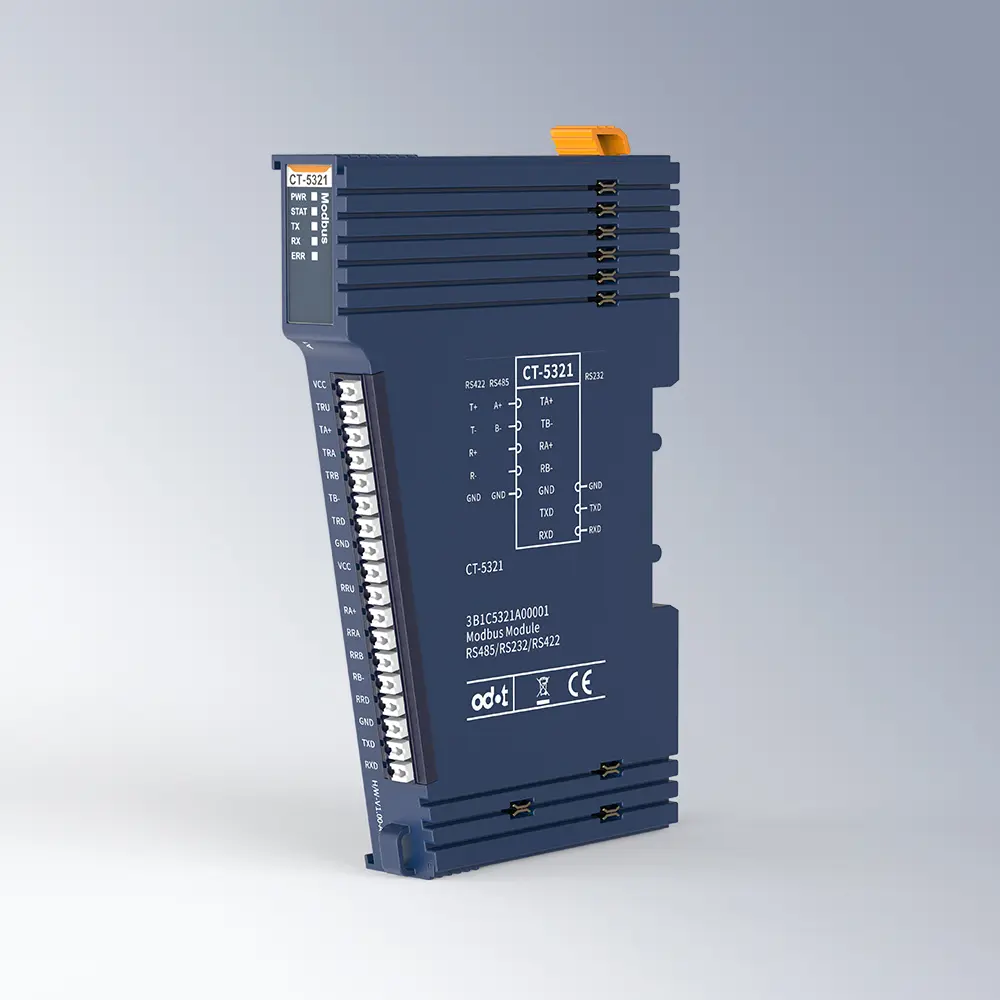

Odot - Modbus Serial Port Module
The CT-5321 is a Modbus serial port module supporting RS485/RS232/RS422 and Modbus RTU/ASCII in master, slave, or transparent modes. It can bridge Modbus to protocols such as Modbus TCP, Profinet, EtherCAT, and EtherNet/IP via adapter modules, and is compatible with a wide range of industrial devices including PLCs, DCS, VFDs, and instrumentation. Configuration is done via IO Config software.

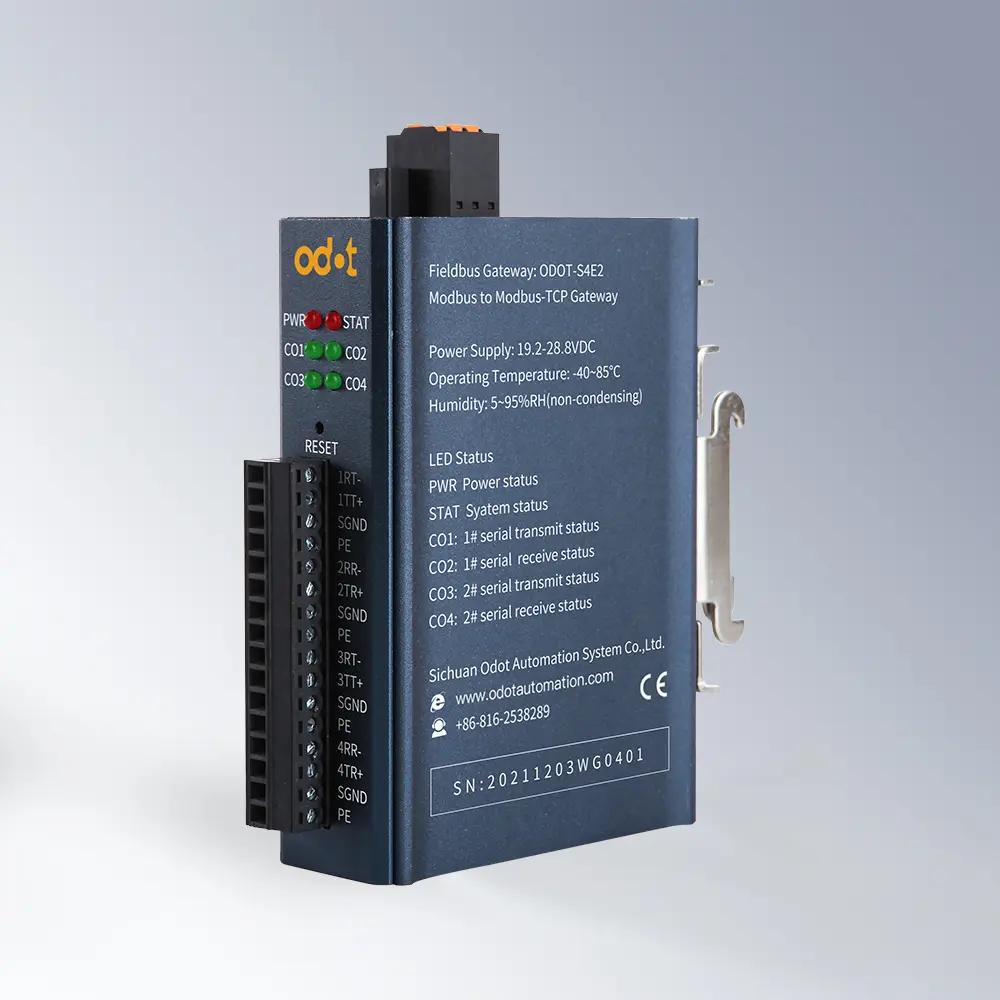

Odot - S4E2 Gateway 4 Serial Modbus RTU ASCII to Modbus TCP Protocol Converter
The ODOT-S4E2 Modbus RTU/ASCII to Modbus TCP gateway supporting up to 5 simultaneous TCP clients. The S4E2 supports 4 ports with RS485/RS232/RS422 wiring.
Odot - ODOT-S2E2 Gateway 2 Serial Modbus RTU ASCII to Modbus TCP Protocol Converter
Modbus RTU/ASCII to Modbus TCP with 2 Serials Port and 2 Ethernet Ports
Odot - ODOT-S1E1 Serial Gateway Protocol Converter
ODOT-S1E1: Supports TCP server and TCP client transparent transmission, Supports UDP transparent transmission and virtual serial ports, Supports transparent transmission with or without protocol. Protocol transparent transmission supports MODBUS RTU/ASCII, Supports WEB browser configuration parameters (Common parameters) Serial port baud rate 1200 to 115200 bps, Supports transparent transmission through MQTT
Odot - ODOT-PNM02 Modbus-RTU ASCll to ProfiNET Converter
Modbus (master/slave, RTU/ASCII) to ProfiNET, 2 port serial port (RS485/ RS232 / RS422), supports 50 slots ie 50 commands in TIA portal, supports MAX 50 slaves
Odot - ODOT-MS100T Series 8-Port Unmanaged Industrial EtherNet Switch
Aluminum alloy shell, 8 100M Ethernet ports, 10M/100Mbps, 3-year warranty， -40℃-85℃ Size: 110x80x40mm
Odot - ODOT-MS100T Series 5-Port Unmanaged Industrial EtherNet Switch
Aluminum alloy shell, 5 100M Ethernet ports, 10M/100Mbps, 3-year warranty, -40℃-85℃ Size:110x80x27.5mm
Odot - ODOT-DPM01 Gateway Modbus RTU to Profibus-DP Converter
Modbus RTU (Master/Slave) to Profibus-DP (Slave), Aluminum Alloy Casing, 1 port RS485, 1 port Profibus-DP
Odot - CT-7221 Power Supply Extension Module 5V 2A - (Discontinued, use CT-7220)
CT-7221: Expansion power Supply (System power input 24Vdc,Output 5Vdc/2A,Field power input 24Vdc,Output 24Vdc/8A）
Odot - CT-7220 Power Supply Extension Module 5V 2A
CT-7220: Extended power supply module (system power input 24V DC, output 5V DC/2A; field power input 24V DC, output 24V DC/8A), no configuration required, no slot occupied, no diagnostic function
Odot - CT-623F Digital Input Output Module 8DI 24VDC Source or Sink
CT-623F: 8 channels / digital input / 24VDC / source or sink type &8 channels / digital output / 24VDC / source type, single output channel max current 500mA
